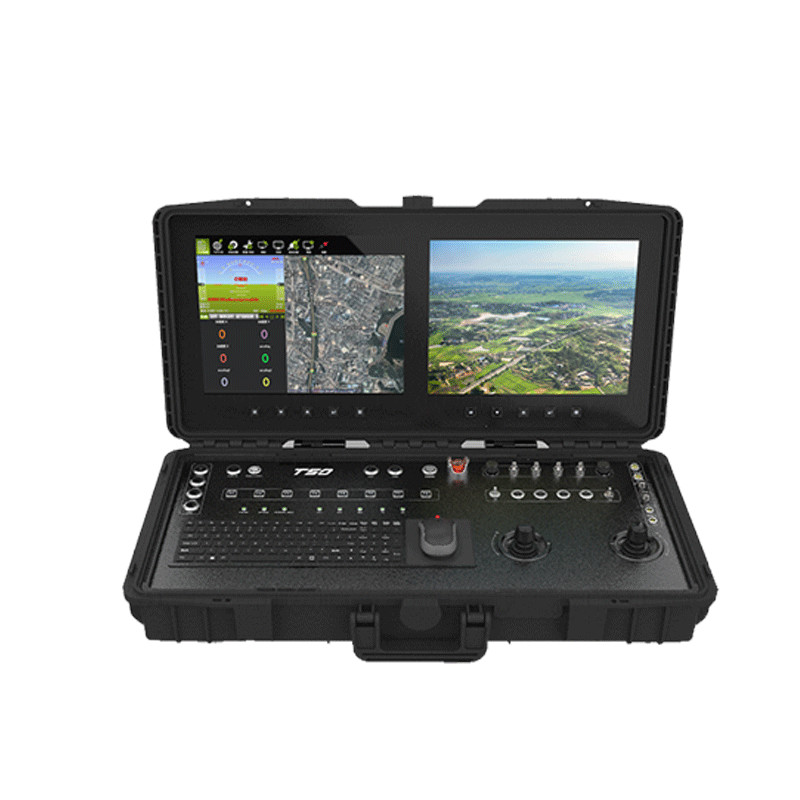

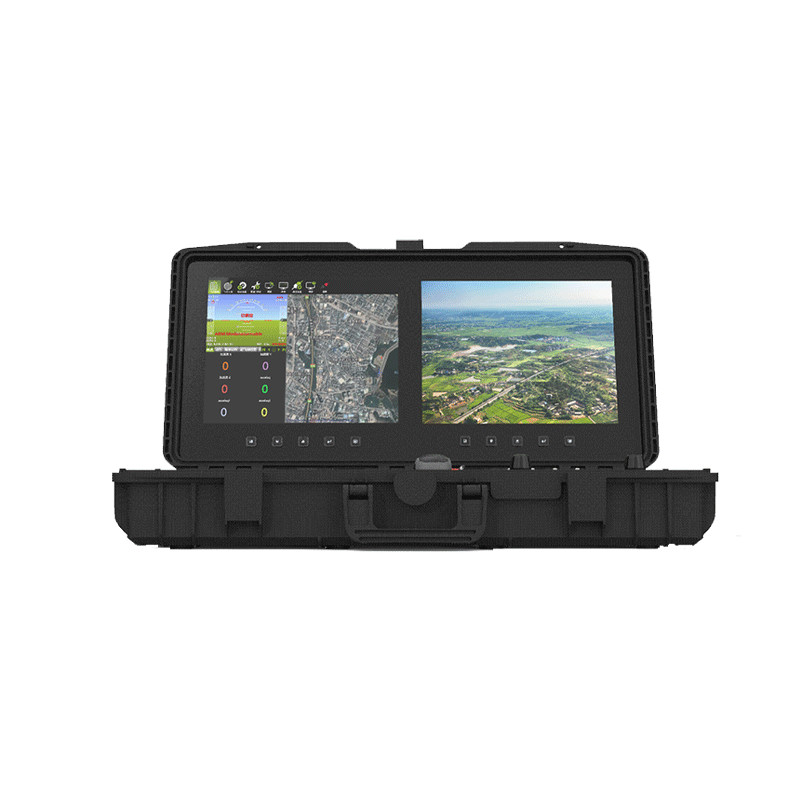

The T50 dual-screen ground control station combines image and data transmission, remote control, and industrial computing. lt boasts two 17-inch high-def displays with 1,000 NIT brightness and touch screens. Inside, it packs an Intel i7 12-core CPU,32GB RAM, and a 1TB SSD.
With 27 channels and retractable joysticks, users can customize settings. Its built-in data link covers 10-150km,offering extensive coverage and supporting third-party link integration.The station's various interfaces make it easy to connect with UAVs, UGVs, robots, and other unmanned devices.
Product Features
Highly integrated, all-in-one design
Industrial Pelican Box,lightweight at around 20KG
17-inch HD&HB industrial anti-glare touchscreen
Versatile joystick system with customizable settings
Supports external power supply with hot-swappable capability.
First-of-its-kind soft key setting domestically
Compatible with most devices in the market
External HDMl input for video,ensuring flexibility
Traditional RC input supportive
Dust and waterproof design
Product Parameters:
| Dimension | |
| Overall weight | 20000g |
| Overall dimension | 850mm(L)*425mm(W)*160mm(H) |
| Display screen | Dual 17inch 1280*1024 1000nit |
| Computer | |
| CPU | Intel i7 1260P(standard) |
| Touch pad | Capacitive 10-finger touch screen |
| Operating system | Windows 10/Linux |
| RAM | 32G(standard) |
| SSD storage | 1T(standard) 2T max |
| Network | WIFI 6,Bluetooth,AX211 NIC |
| Interface | HDMI in USB3.0*2,LAN*3,Type-c |
| Remote Control | |
| Physical channel | Main joysticks*2,Knob*6,Key button*12,3-position switch*4,2-position switch*2,Stop button*1 |
| Remote control function | Dual SBUS independent output,able to control the vehicle and the payload simultaneously |
| Remote control latency | 40ms |
| SBUS port | USB IN*1 SBUS OUT*2 |
| Battery | |
| Battery capacity | 25.2V/30000mAh(external power source also supported) |
| Endurance | 8hs with full battery capacity |
| Charging port | DC25.2V |
| Communication link | |
| V31 | 150km and up |
| The 3rd party communication link | Supportive |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
