1.2kg GCS Ground Control Station Independent Programmed Dual SBUS

Brand Name : CHINOWING

Model Number : T21

Certification : FCC CE KC

Place of Origin : China

MOQ : 1pcs

Price : USD$1493.4-USD$1572.0

Payment Terms : T/T

Supply Ability : 1-10000PCS

Delivery Time : 2-8 working days

Packaging Details : Plastic suitcase+ carton packing

Channel : 16 channel*2

Frequency : 902-928MHZ

RF power : R20:0.1-1w(adjustable)

Remote control range : 5-30km(based on the environment)

Remote control latency : 10ms

Battery capacity : 3.7V/7500mah

Duration : 3H with full capacity

Weight : 1.2kg

System : Windows 10

Screen : 8inch+1280*720+350CCD

Resolution : 1280*720

CPU : Intel Intel CherryTrail Z8350

ROM : 4G DDR3

Storage : 64GB

IP rating : IP53

External interface : USB2.0

Contact Now

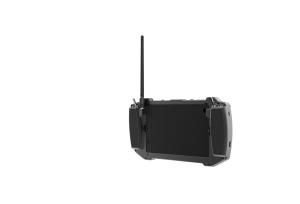

T21 hand held ground control station with independent programmed dual SBUS design

The T21 is a rugged, portable, desktop computer that is capable of handling a variety of tasks including mission planning, attitude control, payload control, navigation and positioning, remote monitoring, etc. It provides mission planning, attitude control, payload control, navigation and positioning, in addition to a host of other functions.

Industrial-grade computer and military grade data link makes sure the safety and stability of the flight. Easy operation and transportation.

Product Features

  • Operating system: Windows10

  • 2 main joysticks and 2 auxiliary joysticks
  • Multiple joystick options left and right-handed mode, back center mode, industrial hall effect joystick
  • All the channels can be self-defined in the RC software

  • The overall weight is only 1kg, easy to carry, and easy to use.

  • Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

1.2kg GCS Ground Control Station Independent Programmed Dual SBUS1.2kg GCS Ground Control Station Independent Programmed Dual SBUS1.2kg GCS Ground Control Station Independent Programmed Dual SBUS1.2kg GCS Ground Control Station Independent Programmed Dual SBUS

T21 GCS
Channel 16 physical channels*2 Screen 8inch+1280*720+350CCD
Frequency 902-928MHZ Resolution 1280*720
RF power R20:0.1-1w(adjustable) CPU Intel Intel Cherry Trail Z8350
Remote control range 5-30km(based on the environment) ROM 4GB DDR3
Remote control latency 10ms Storage 64GB
Battery capacity 3.7V/7500mAh IP rating IP53
Duration 3H with full capacity External interface USB2.0
Dimension 300mm*160mm*40mm
Weight 1.2kg
System Win10
